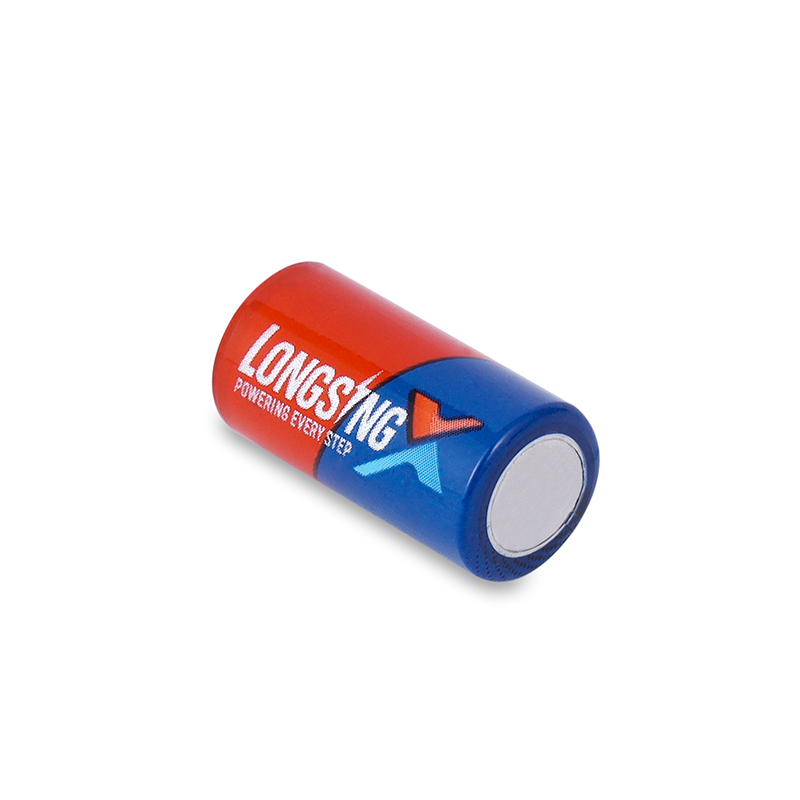

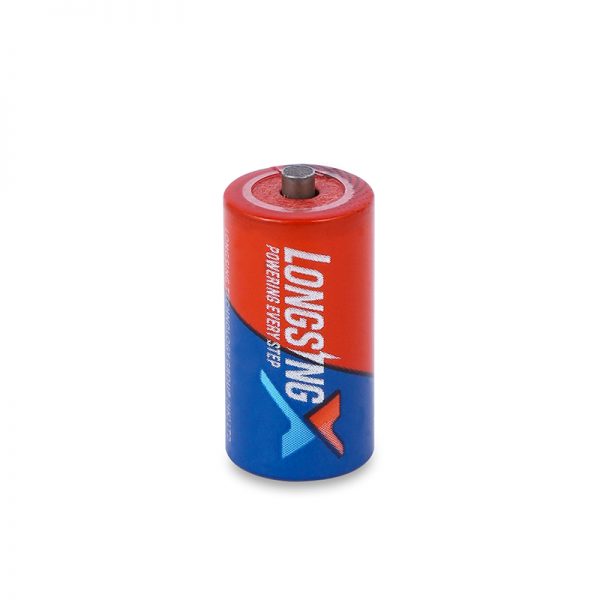

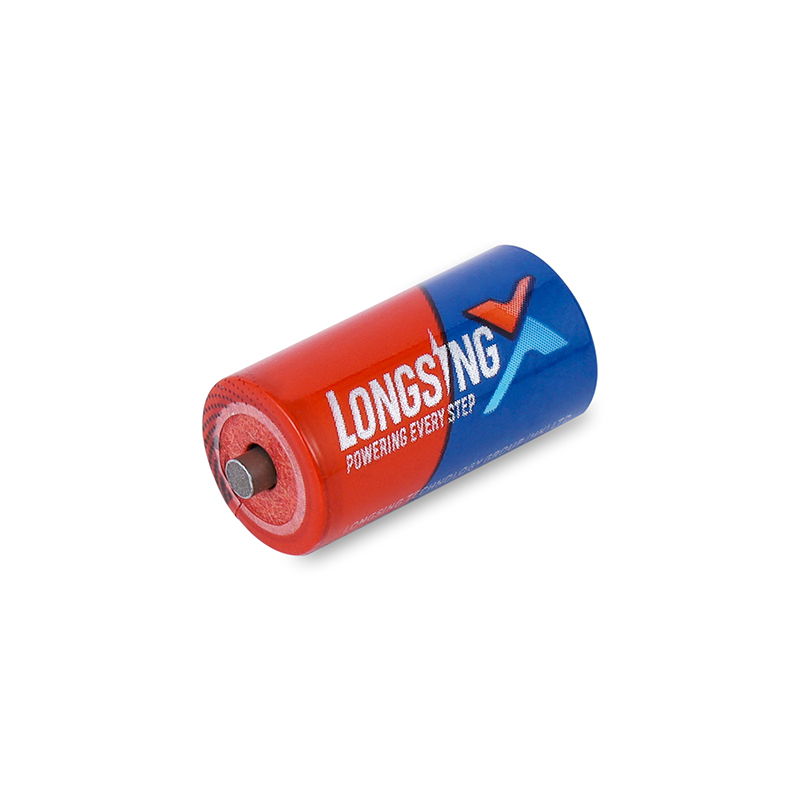

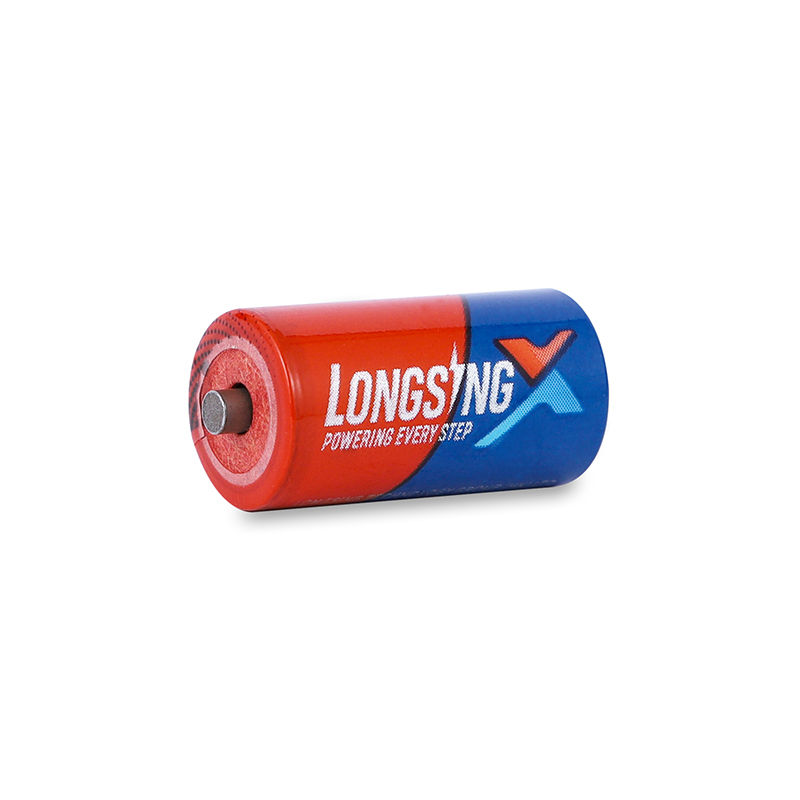

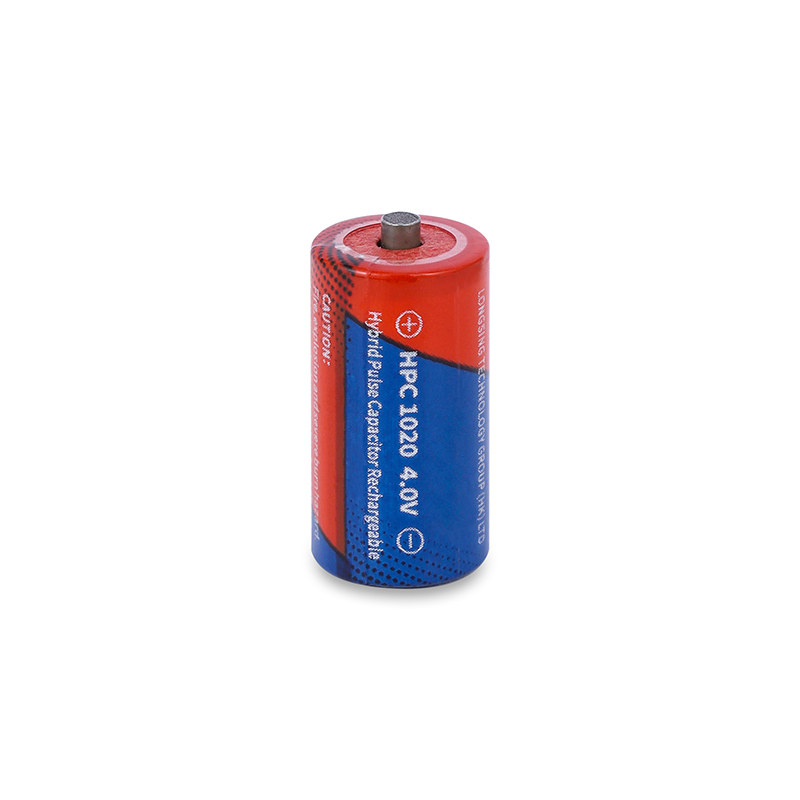

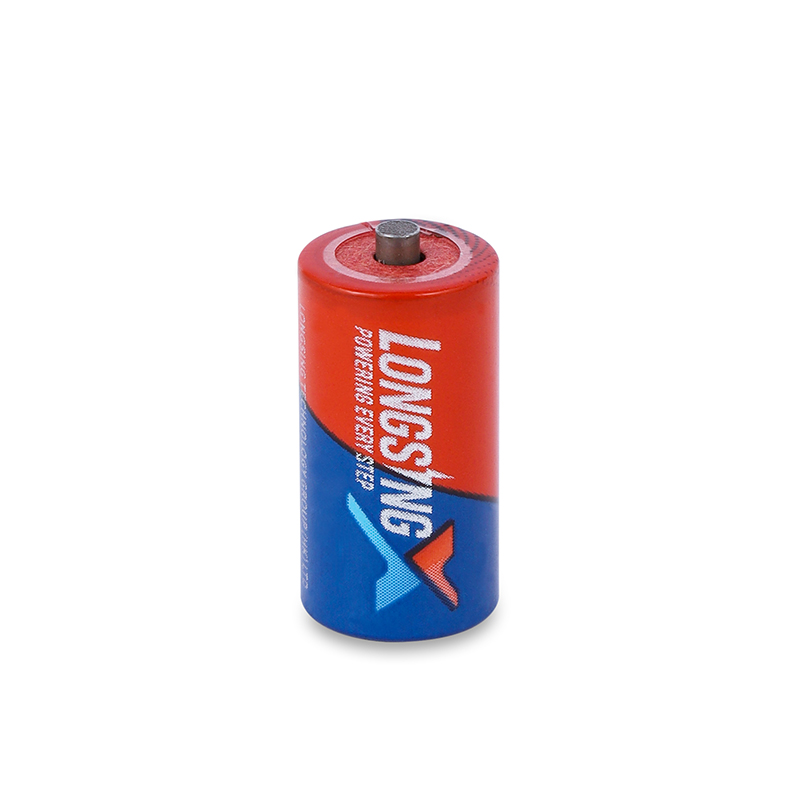

Hybrid capacitor battery can replace the Tadiran HLC1020 performance, we call it Hybrid Pulse Capacitor (HPC) , is a kind of rechargeable battery, they are used as a capacitor in IOT battery pack, where they are connected in parallel to bobbin-type lithium thionyl chloride LiSOCl2 battery. The HPCs’ have low impedance and can deliver high current pulses. Our IoT battery pack will provide the maximum of both energy and power density for different types of IoT applications.
| Model number | Max. charging voltage | Nominal . charging current | Nominal discharge current | Max. continuous discharge current | Max. capacity | 3.67V capacity | 3.90V capacity | Discharge off voltage | Resistance | Working temperature | Max. external dimension(mm) |
| HPC1020 | 4.1V | 8mA | 150mA | 750mA | 36mAh | 10mAh | 28mAh | 2.5V | ≤300mΩ | -40℃~+85℃ | 10×20 |
| HPC1520 | 4.1V | 20mA | 500mA | 2000mA | 80mAh | 40mAh | 60mAh | 2.5V | ≤160mΩ | -40℃~+85℃ | 15×20 |
| HPC1530 | 4.1V | 50mA | 800mA | 3000mA | 180mAh | 70mAh | 150mAh | 2.5V | ≤110mΩ | -40℃~+85℃ | 15×30 |
| HPC1550 | 4.1V | 100mA | 2000mA | 5000mA | 450mAh | 175mAh | 350mAh | 2.5V | ≤60mΩ | -40℃~+85℃ | 15×50 |
HPC1020 Hybrid Capacitor Battery Features:
- Suurepärane säilivusaeg (10 aastat toatemperatuuril).
- Sobib kõige paremini väikese voolu tühjenemiseks
- Wide temperature range from -40℃ to +85℃
- Madal isetühjenemine (1% või vähem aastas)
The Applications of HPC1020 Hybrid Capacitor Battery
Veearvestid, gaasiarvestid, kilovatt-tunni arvestid, elektroonilised pakkimisarvestid, arvuti reaalajas kellad, meditsiiniseadmed, CMOS-mälu varundus
Our Hybrid Capacitor Battery are Compliance with UL1642, IEC62133, UN38.3 and RoHs Standard.
